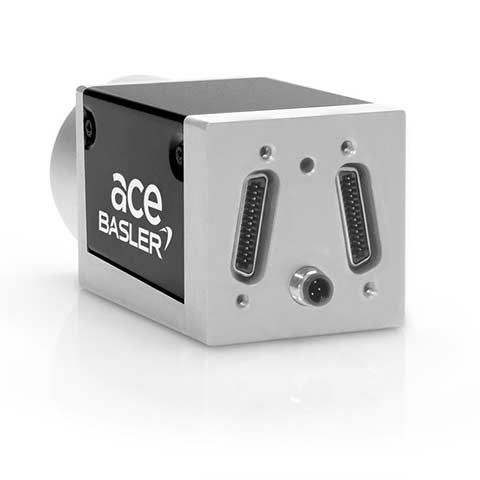

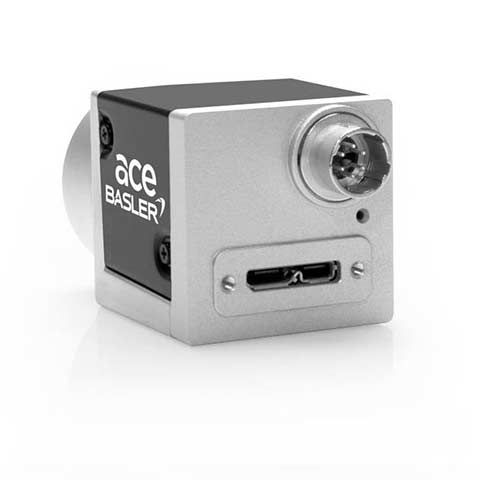

Ace Series

Area Scan Cameras

Small, affordable and highly productive

High quality & performance, low list prices and small cases: This combination makes the Ace Series one of the top-selling cameras, with thousands of satisfied customers.

The Basler Ace cameras are available with various resolutions and speeds as well as a range of interfaces and sensors from all leading manufacturers. This versatility, combined with extensive features, makes the Ace the perfect choice for a large number of Machine Vision applications.

  • icon check
    VGA to 20MP and up to 751 frames per second
  • icon check
    Interfaces: USB 3.0, GigE and Camera Link
  • icon check
    Extensive firmware features
  • icon check
    Excellent stability and flexibility
  • icon check
    Broad sensor portfolio: CCD, CMOS and NIR variants
  • icon check
    Single cable solutions
  • icon check
    Outstanding price/performance ratio
  • icon check
    Easy integration
Model Resolution Sensor Frame Rate Mono / Color Interface
acA640-90gc 658px x 492px (VGA) ICX424 90 fps Color GigE
acA640-90uc 658px x 492px (VGA) ICX424 90 fps Color USB 3.0
acA640-90gc (CS-Mount) 658px x 492px (VGA) ICX424 90 fps Color GigE
acA640-90uc (CS-Mount) 658px x 492px (VGA) ICX424 90 fps Color USB 3.0
acA640-120gc 658px x 492px (VGA) ICX618 120 fps Color GigE
acA640-120uc 658px x 492px (VGA) ICX618 120 fps Color USB 3.0
acA640-120gc (CS-Mount) 658px x 492px (VGA) ICX618 120 fps Color GigE
acA640-120uc (CS-Mount) 658px x 492px (VGA) ICX618 120 fps Color USB 3.0
acA640-90gm 659px x 494px (VGA) ICX424 90 fps Mono GigE
acA640-90um 659px x 494px (VGA) ICX424 90 fps Mono USB 3.0
acA640-90gm (CS-Mount) 659px x 494px (VGA) ICX424 90 fps Mono GigE
acA640-120gm 659px x 494px (VGA) ICX618 120 fps Mono GigE
acA640-120um 659px x 494px (VGA) ICX618 120 fps Mono USB 3.0
acA640-120gm (CS-Mount) 659px x 494px (VGA) ICX618 120 fps Mono GigE
acA780-75gc 780px x 580px (CCIR) ICX415 75 fps Color GigE
acA780-75gc (CS-Mount) 780px x 580px (CCIR) ICX415 75 fps Color GigE
acA780-75gm 780px x 580px (CCIR) ICX415 75 fps Mono GigE
acA1280-60gc 1280px x 1024px (1.3 MP) EV76C560 60 fps Color GigE
acA1300-60gc 1280px x 1024px (1.3 MP) EV76C560 60 fps Color GigE
acA1300-60gmNIR 1280px x 1024px (1.3 MP) EV76C661 60 fps Mono GigE
acA1300-60gmNIR (CS Mount) 1280px x 1024px (1.3 MP) EV76C661 60 fps Mono GigE
acA1300-60gc (CS Mount) 1280px x 1024px (1.3 MP) EV76C560 60 fps Color GigE
acA1280-60gm 1282px x 1026px (1.3 MP) EV76C560 60 fps Mono GigE
acA1300-60gm 1282px x 1026px (1.3 MP) EV76C560 60 fps Mono GigE
acA1300-60gm (CS Mount) 1282px x 1026px (1.3 MP) EV76C560 60 fps Mono GigE
acA1300-22gc (CS Mount) 1294px x 964px (1.3 MP) ICX445 22 fps Color GigE
acA1300-30gc 1294px x 964px (1.3 MP) ICX445 30 fps Color GigE
acA1300-30uc 1294px x 964px (1.3 MP) ICX445 30 fps Color USB 3.0
acA1300-30gc (CS Mount) 1294px x 964px (1.3 MP) ICX445 30fps Color GigE
acA1300-22gm (CS Mount) 1296px x 966px (1.3 MP) ICX445 22 fps Mono GigE
acA1300-30gm 1296px x 966px (1.3 MP) ICX445 30 fps Mono GigE
acA1300-30um 1296px x 966px (1.3 MP) ICX445 30 fps Mono USB 3.0
acA1300-30gm (CS Mount) 1296px x 966px (1.3 MP) ICX445 30 fps Mono GigE
acA1600-60gc 1600px x 1200px (2 MP) EV76C570 60 fps Color GigE
acA1600-60gc (CS Mount) 1600px x 1200px (2 MP) EV76C570 60 fps Color GigE
acA1600-60gm 1602px x 1202px (2 MP) EV76C570 60 fps Mono GigE
acA1600-20gc 1624px x 1234px (2 MP) ICX274 20 fps Color GigE
acA1600-20uc 1626px x 1234px (2 MP) ICX274 20 fps Color USB 3.0
acA1600-20gm 1624px x 1236px (2 MP) ICX274 20 fps Mono GigE
acA1600-20um 1626px x 1236px (2 MP) ICX274 20 fps Mono USB 3.0
acA1600-20gm (CS Mount) 1624px x 1236px (2 MP) ICX274 20 fps Mono GigE
acA1600-20um (CS Mount) 1626px x 1236px (2 MP) ICX274 20 fps Mono USB 3.0
acA1920-25gc 1920px x 1280px (2 MP) MT9P031 25 fps Color GigE
acA1920-25gm 1920px x 1280px (2 MP) MT9P031 25 fps Mono GigE
acA1920-25gc (CS Mount) 1920px x 1280px (2 MP) MT9P031 25 fps Color GigE
acA1920-25uc 1920px x 1280px (2 MP) MT9P031 25 fps Color USB 3.0
acA1920-25um 1920px x 1280px (2 MP) MT9P031 25 fps Mono USB 3.0
acA2000-165uc 2040px x 1086px (2 MP) CMV2000 165 fps Color USB 3.0
acA2040-90uc 2040px x 2046px (4 MP) CMV4000 90 fps Color USB 3.0
acA2000-50gc 2040px x 1086px (2 MP) CMV2000 50 fps Color GigE
acA2000-50gc (CS Mount) 2040px x 1086px (2 MP) CMV2000 50 fps Color GigE
acA2000-340kc 2040px x 1086px (2 MP) CMV2000 340 fps Color Camera Link
acA2040-25gc 2046px x 2046px (4 MP) CMV4000 25 fps Color GigE
acA2040-180kc 2046px x 2046px (4 MP) CMV4000 180 fps Color Camera Link
acA2000-50gm 2048px x 1088px (2 MP) CMV2000 50 fps Mono GigE
acA2000-50gmNIR 2048px x 1088px (2 MP) CMV2000 NIR-enhanced 50 fps Mono GigE
acA2000-165um 2048px x 1088px (2 MP) CMV2000 165 fps Mono USB 3.0
acA2000-165umNIR 2048px x 1088px (2 MP) CMV2000 NIR-enhanced 165 fps Mono USB 3.0
acA2000-340km 2048px x 1088px (2 MP) CMV2000 340 fps Mono Camera Link
acA2000-340kmNIR 2048px x 1088px (2 MP) CMV2000 NIR-enhanced 340 fps Mono Camera Link
acA2040-25gm 2048px x 2048px (4 MP) CMV4000 25 fps Mono GigE
acA2040-25gmNIR 2048px x 2048px (4 MP) CMV4000 NIR-enhanced 25 fps Mono GigE
acA2040-90um 2048px x 2048px (4 MP) CMV4000 90 fps Mono USB 3.0
acA2040-90umNIR 2048px x 2048px (4 MP) CMV4000 NIR-enhanced 90 fps Mono USB 3.0
acA2040-180km 2048px x 2048px (4 MP) CMV4000 180 fps Mono Camera Link
acA2040-180kmNIR 2048px x 2048px (4 MP) CMV4000 NIR-enhanced 180 fps Mono Camera Link
acA2500-14gc 2590px x 1942px (5 MP) MT9P031 14 fps Color GigE
acA2500-14uc 2590px x 1942px (5 MP) MT9P031 14 fps Color USB 3.0
acA2500-14gc (CS Mount) 2590px x 1942px (5 MP) MT9P031 14 fps Color GigE
acA2500-14uc (CS Mount) 2590px x 1942px (5 MP) MT9P031 14 fps Color USB 3.0
acA2500-14gm 2590px x 1942px (5 MP) MT9P031 14 fps Mono GigE
acA2500-14um 2590px x 1942px (5 MP) MT9P031 14 fps Mono USB 3.0
acA2500-14gm (CS Mount) 2590px x 1942px (5 MP) MT9P031 14 fps Mono GigE
acA2500-14um (CS Mount) 2590px x 1942px (5 MP) MT9P031 14 fps Mono USB 3.0
acA3800-10gc 3840px x 2748px (10 MP) MT9J003 10 fps Color GigE
acA3800-10gm 3840px x 2748px (10 MP) MT9J003 10 fps Mono GigE
acA3800-14uc 3840px x 2748px (10 MP) MT9J003 14 fps Color USB 3.0
acA3800-14um 3840px x 2748px (10 MP) MT9J003 14 fps Mono USB 3.0
acA4600-7gc 4608px x 3288px (14 MP) MT9F002 7 fps Color GigE
acA4600-10uc 4608px x 3288px (14 MP) MT9F002 10 fps Color USB 3.0
