Dart Series

Area Scan Cameras

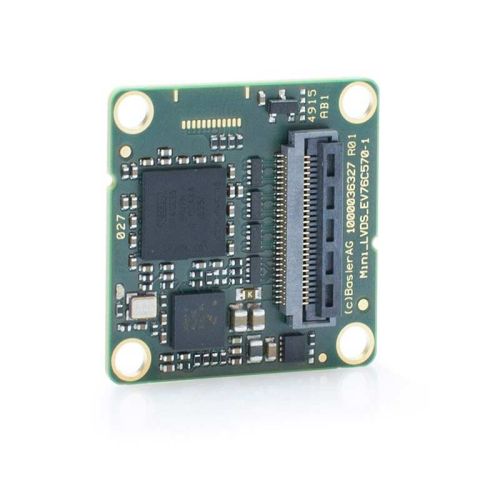

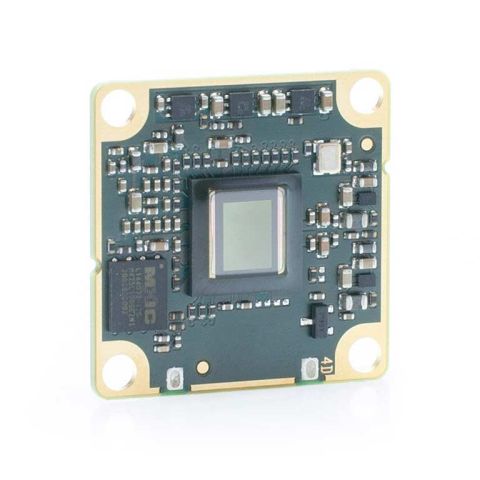

Smallest board level design and highly flexible

Basler's Dart Series comes in different mount options allowing a variety of lenses to be used, including affordable S-mount lenses. Moreover the series sets a new standard in single board cameras with its small footprint of only 27mm x 27mm.

Available with three versatile interfaces and compliant with the USB3 Vision Standard, the Dart offers advantages including easy integration, convenient plug and play functionality as well as secure data transfer up to 350 MB/s. Depending on the model, the pre-processing of the image can take place either in the ISP of the host processor or directly in the camera.

  • icon check
    Board level cameras
  • icon check
    One-cable solution
  • icon check
    Best-in-class image pre-processing
  • icon check
    Long-term availability and industry-proven reliability
Model Resolution Sensor Frame Rate Mono / Color Interface
daA1280-54lc (S-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color BCON for LVDS
daA1280-54lm (S-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono BCON for LVDS
daA1280-54uc (No-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color USB 3.0
daA1280-54um (No-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono USB 3.0
daA1280-54um (S-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono USB 3.0
daA1280-54um (CS-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono USB 3.0
daA1280-54uc (CS-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color USB 3.0
daA1280-54uc (S-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color USB 3.0
daA1280-54lm (No-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono BCON for LVDS
daA1280-54lm (CS-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Mono BCON for LVDS
daA1280-54lc (No-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color BCON for LVDS
daA1280-54lc (CS-Mount) 1280px x 960px (1.2MP) AR0134 54 fps Color BCON for LVDS
daA1600-60uc (No-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color USB 3.0
daA1600-60um (CS-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono USB 3.0
daA1600-60lc (S-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color BCON for LVDS
daA1600-60lm (S-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono BCON for LVDS
daA1600-60um (No-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono USB 3.0
daA1600-60um (S-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono USB 3.0
daA1600-60uc (CS-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color USB 3.0
daA1600-60uc (S-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color USB 3.0
daA1600-60lm (No-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono BCON for LVDS
daA1600-60lm (CS-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Mono BCON for LVDS
daA1600-60lc (No-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color BCON for LVDS
daA1600-60lc (CS-Mount) 1600px x 1200px (2MP) EV76C570 60 fps Color BCON for LVDS
daA1920-15um (No-Mount) 1920px x 1080px (2MP) MT9P031 15 fps Mono USB 3.0
daA1920-30uc (S-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Color USB 3.0
daA1920-30um (S-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Mono USB 3.0
daA1920-30um (No-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Mono USB 3.0
daA1920-30um (CS-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Mono USB 3.0
daA1920-30uc (No-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Color USB 3.0
daA1920-30uc (CS-Mount) 1920px x 1080px (2MP) MT9P031 30 fps Color USB 3.0
daA2500-60mc (S-Mount) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mc (No-Mount) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mc (No-Mount) - Tray (40pcs) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mc (S-Mount) - Tray (40pcs) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mci (No-Mount) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mci (No-Mount) - Tray (40pcs) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mci (S-Mount) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-60mci (S-Mount) - Tray (40pcs) 2560px x 1920px (5MP) AR0521 60 fps Color BCON for MIPI
daA2500-14lc (S-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color BCON for LVDS
daA2500-14lm (S-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono BCON for LVDS
daA2500-14uc (S-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color USB 3.0
daA2500-14um (S-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono USB 3.0
daA2500-14um (No-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono USB 3.0
daA2500-14um (CS-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono USB 3.0
daA2500-14uc (No-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color USB 3.0
daA2500-14uc (CS-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color USB 3.0
daA2500-14lm (No-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono BCON for LVDS
daA2500-14lm (CS-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Mono BCON for LVDS
daA2500-14lc (No-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color BCON for LVDS
daA2500-14lc (CS-Mount) 2592px x 1944px (5MP) MT9P031 14 fps Color BCON for LVDS
daA4200-30mci (No-Mount) 4208px x 3120px (13MP) AR1335 30 fps Color BCON for MIPI
daA4200-30mci (No-Mount) - Tray (40pcs) 4208px x 3120px (13MP) AR1335 30 fps Color BCON for MIPI
daA4200-30mci (S-Mount) 4208px x 3120px (13MP) AR1335 30 fps Color BCON for MIPI
daA4200-30mci (S-Mount) - Tray (40pcs) 4208px x 3120px (13MP) AR1335 30 fps Color BCON for MIPI
